A brushed DC motor is a direct current motor that uses mechanical brushes and a commutator to supply current to the rotor windings, producing continuous rotational motion. It is widely used in compact electronic systems and mechanical devices due to its simple structure, stable output behavior, and cost efficiency.
In permanent magnet brushed DC motors, the magnetic field is generated by fixed magnets rather than field windings. This design reduces structural complexity and supports consistent mass production while maintaining stable performance in small and medium power applications.
According to general engineering references such as Wikipedia’s DC motor documentation, brushed DC motors are still widely used in applications where compact structure, controllability, and cost efficiency are more important than maximum efficiency or maintenance-free operation.
When performing brushed dc motor selection, engineers typically evaluate voltage, torque behavior, and physical size.
Voltage defines the operating range of the motor. Most brushed DC motors in this category operate between 6V and 24V, with 12V being widely used in battery-powered and compact electronic systems. Higher voltage generally increases speed, but operation must remain within rated limits.
Torque vs speed dc motor behavior is a fundamental trade-off in motor design. Lower-speed configurations generally provide higher torque output, while higher-speed configurations prioritize rotational performance. This balance determines suitability for different mechanical loads.
Motor size directly affects integration and thermal behavior. Smaller motors are suitable for compact systems, while larger frames provide better heat dissipation and higher load capability.
The MGLORY RS series covers a range of brushed DC motors designed for different size, speed, and load requirements.

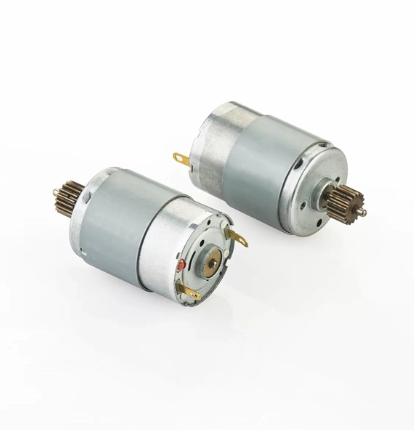

rs380 dc motor is a high-speed, ultra-compact micro brushed DC motor designed for low-power precision applications. It features a permanent magnet structure, carbon brush commutation, and compact 27.8mm × 37.8mm body size. With stable low-current operation and fast response characteristics, it is widely used in smart consumer electronics, portable personal care devices, smart home micro mechanisms, and small intelligent equipment.

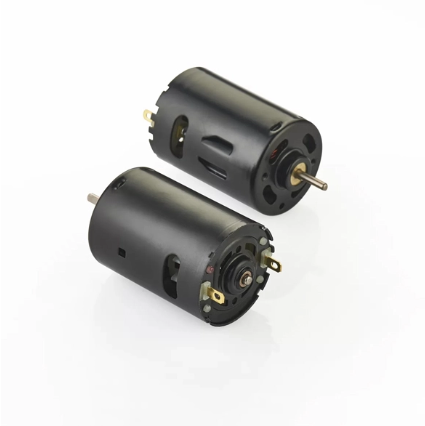

rs 540 dc motor is a balanced performance motor with a 5-pole structure and wide voltage range (6V–24V). It provides stable torque output and smooth operation, making it suitable for RC systems, hobby equipment, small appliances, and lightweight mechanical devices requiring balanced speed and load handling.

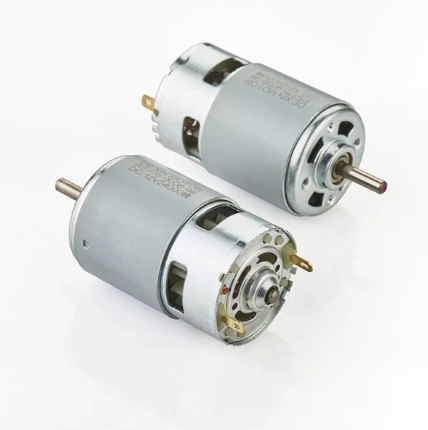

dc motor 750 is designed for higher-load applications requiring stronger torque output and continuous working capability. It is widely used in power tools, grass trimmers, water pumps, electric sprayers, massage guns, and vacuum sweepers. Its copper winding structure improves thermal stability and long-term operational reliability.

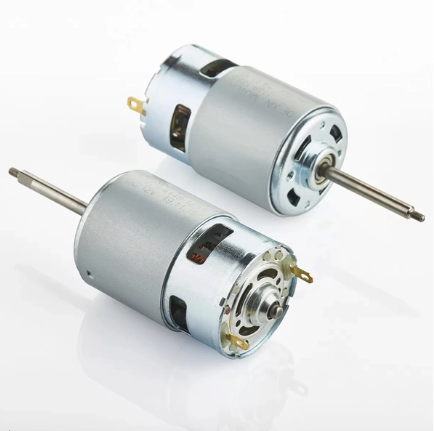

775 brushed dc motor is designed for high-power continuous operation scenarios. It features a ball bearing structure for improved mechanical stability and an internal cooling fan for thermal management. With a larger body size and higher output capability, it is suitable for systems requiring sustained rotational force under continuous load conditions.
| Model | Voltage Range | Size (mm) | Bearing | Cooling | Application Capability |
|---|---|---|---|---|---|
| RS380 | 3–12V | 27.8 × 37.8 | Oil bearing | No | Micro precision electronic devices |
| RS540 | 6–24V | ~35.8 × 50 | Bearing options | Yes | Hobby, RC, light mechanical systems |
| DC motor 750 | 12–24V | ~42 class | Ball bearing | Yes | Higher-load consumer applications |
| 775 brushed DC motor | 12–24V | 42.2 × 66.5 | Ball bearing | Yes | Continuous operation mechanical systems |
Voltage and torque are related but not directly proportional in brushed DC motor systems. Increasing voltage generally increases speed, but torque depends more on winding structure, current capacity, and load conditions.
Copper winding designs, such as those used in MGLORY RS series motors, help reduce energy loss and maintain more stable performance under varying load conditions. This is especially important in compact and continuously operating systems.
In practical engineering design, balancing speed and torque is essential. A motor optimized only for speed may perform poorly under load, while a torque-focused design may reduce efficiency in high-speed applications.
Brushed DC motors in the RS series are used across different application levels, depending on size and output characteristics.
RS380 DC motor is designed for ultra-compact and precision-driven applications. It is widely used in smart consumer electronics, portable devices, personal care equipment, and micro mechanical systems where space is limited and low-power stable output is required.
RS 540 DC motor is suitable for hobby systems, RC models, small appliances, and lightweight mechanical devices requiring balanced speed and torque performance.
DC motor 750 is commonly used in higher-load applications such as water pumps, electric sprayers, grass trimmers, vacuum systems, and power tools.
775 brushed DC motor is used in systems requiring sustained operation and stable performance under continuous load conditions, especially in larger mechanical and high-power rotating systems.
One common mistake in brushed dc motor selection is focusing only on voltage while ignoring torque requirements. A motor may operate correctly electrically but still fail under mechanical load.
Another issue is underestimating thermal behavior. Higher power motors such as the 775 brushed DC motor require proper heat dissipation to maintain stable long-term operation.
A third mistake is incorrect sizing. Compact motors like RS380 are not suitable for higher-load mechanical systems, while oversized motors may reduce efficiency in lightweight applications.
MGLORY RS series brushed DC motors are designed with copper winding technology instead of aluminum wire, improving conductivity, thermal stability, and long-term reliability.
The company also provides OEM customization services, including shaft design, voltage configuration, and structural optimization, allowing adaptation to different product requirements.
As a China-based manufacturer, MGLORY focuses on stable production quality and application-oriented motor design across a wide range of consumer and mechanical applications.
What is brushed dc motor selection based on?
It is mainly based on voltage range, torque behavior, and motor size.
What is the difference between RS380 and RS540 DC motor?
RS380 is a micro precision motor for compact devices, while RS540 provides balanced performance for hobby and light mechanical applications.
Which motor is suitable for power tools?
DC motor 750 and 775 brushed DC motor are commonly used depending on torque and load requirements.
Can 775 brushed DC motor run continuously?
Yes, with proper cooling and load control, it is suitable for continuous operation in appropriate systems.
