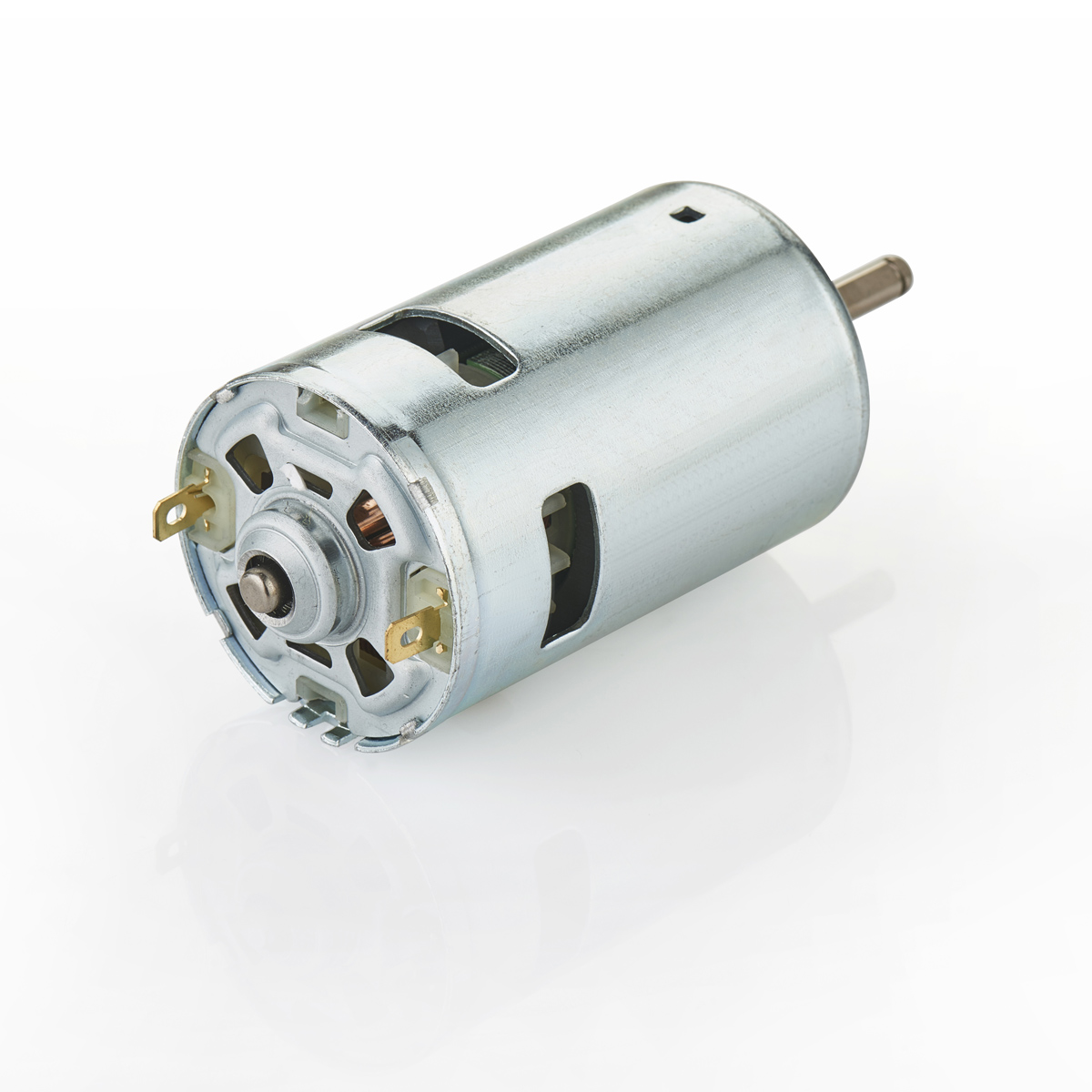

MGLORY's 775 motor is a brushed permanent magnet DC motor. This motor use Pure Copper Wire, Not Aluminium Wire, So the motor is more reliable and long lifetime. Also, the 775 brushed DC motor front used ball bearing to reduce the end play and noise. And cooling fan inside to reduce the temperature of the motor during operation. MGLORY is your go-to source for DC motor China.
Brushless 707 Motor Medium DC Brushed Motor
Rated Voltage: 12V / 24V (Range 6–o-load Speed: Approx. 12,000 RPM at 12V; Approx. 18,000 RPM at 24V
ower: Approx. 60–100W, Max Power up to 150–180W
Rated Current: Appro. 1.2A at 12V; Approx. 2.2A at 24V
Stall Torque: Approx. 0.8–1aft Diameter: 5mm Round Shaft (Optional D-Shaft / Threaded Shaft)
Weight: Approx. 350–400g
Efficieny: Approx. 70–75%
| Model Number | RS775 |
| Construction | Permanent Magnet |
| Commutation | Carbon Brush |
| Material of the Housing | SECD |
| Motor Housing Shape | Round |
| Motor Cover | Iron |
| Motor Diameter | 42.2mm |
| Motor Length | 66.5mm |
| Shaft Diameter | 5mm |
| Shaft Material | Stainless Steel |
| Bearing | Ball Bearing |
| Power | DC |
| Rotation | CCW/CW |
| Cooling Fan | Yes |
| Motor Weight | 360g Around |
| Model | Voltage | No Load | At Maximum Efficiency | Stall | ||||||
| Speed | Current | Speed | Current | Torque | Output | EFF | Torque | Current | ||
| rpm | A | rpm | A | mN.m | W | % | mN.m | A | ||
| RS775- 8513 | 18.0 | 21000 | 3.30 | 18904 | 18.55 | 131 | 259 | 79 | 1095 | 130.4 |
| RS775- 3559 | 24.0 | 7000 | 0.50 | 5862 | 2.19 | 61 | 37 | 72 | 443 | 14.0 |
| Note: It's only typical technical data for reference. Special requirements of DC motor wholesale can be customized, please refer to chart below. | ||||||||||
| Voltage Range | 6V to 36V |
| Speed Range | 2000rpm to 25000rpm |
| Power Range | 5W to 320W |
| Torque Range | 30mN.m to 160mN.m |
| Stall Torque Range | 220mN.m to 1000mN.m |
