Engineer's Guide: How to Select the Perfect Micro DC Motor for Your Project?

Published: March 20, 2026 | Category:Technical Wiki | Author:Mglory Motor Engineering Team

In the development of smart hardware, power tools, or automation equipment, engineers and procurement professionals face a core challenge: How do you find the "perfect fit" heart among thousands of motor models?

Choosing an overpowered motor increases cost and weight; choosing an underpowered one leads to stalling or burnout. Today, drawing on years of manufacturing experience at Mglory, we will teach you how to precisely lock in the right Micro DC Motor for your project using four core parameters.

I. Understanding the "Big Four" Motor Parameters

Whether Brushed or Brushless, motor selection always comes back to these four physical quantities. Master these, and you're ahead of 80% of beginners.

1. Rated Voltage

This is the "comfort zone" voltage for the motor's operation.

• Key Point: While motors can run below rated voltage, torque will drop. Running significantly above rated voltage will cause rapid overheating and burnout.

• Mglory Tip: If your device uses Li-ion batteries (8.4V full, 6V empty), we recommend selecting a motor rated at 7.2V or using a 12V motor with derating to ensure consistent power.

2. Speed (RPM)

Refers to the number of rotations per minute.

• No-load Speed: Speed without any load attached (typically very high).

• Load Speed: The actual working speed under load (more practical reference).

• Application Context: Drills require high speed (>10,000 RPM), while robotic movement requires low speed and high torque.

3. Torque

The key metric determining the motor's "strength," measured in g.cm or N.m.

• Starting Torque: The force required to overcome inertia from a standstill.

• Stall Torque: The force output when the motor is prevented from rotating.

• Mglory Tip: For devices needing to overcome static friction (e.g., automatic door locks, pumps), always reserve sufficient torque margin.

4. Working Current

This directly impacts battery life and power supply design.

• Stall Current: The current drawn when the motor is stalled (usually 3-5 times the rated current). Driver circuits must be designed to handle this peak value.

II. Model Comparison: RS380 vs. 540 Motor

In the DC motor market, two classic models are often compared. Understanding their characteristics helps narrow down your choice quickly.

Expert Note: If you need both low speed and high force, switching motors alone might not suffice. We recommend a DC Gear Motor, which uses a gearbox to reduce speed and amplify torque.

III. Selection Checklist: 3 Critical Questions

Before contacting DC motor manufacturers, ask yourself these three questions:

1. Do you need speed control?

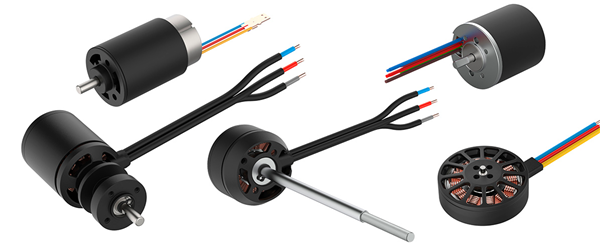

• If variable speed and precision control are needed → Choose Brushless DC Motors (BLDC).

• If simple ON/OFF control is enough → Brushed motors offer better cost-effectiveness.

2. Are there space constraints?

• Flat installation space → Choose flat motors (pancake motors).

• Cylindrical cavity → Choose standard cylindrical motors.

3. What is the budget?

• High-volume consumer products → Opt for cost-effective brushed motors or basic BLDC.

• Industrial or Medical Grade → Must choose high-quality servo motors or custom motors.

IV. Why Choose Mglory as Your Motor Partner?

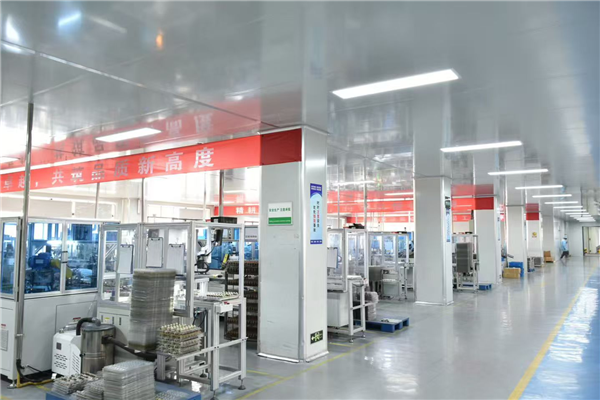

Selection is just step one; finding a reliable factory ensures project success. As a professional DC motor manufacturer in China, Mglory solves your customization pain points:

• Deep Customization (Custom DC Motors)

  Whether it’s shaft length, wiring method, or special KV values (speed constant), our engineering team can provide modification suggestions and drawing confirmation within 48 hours.

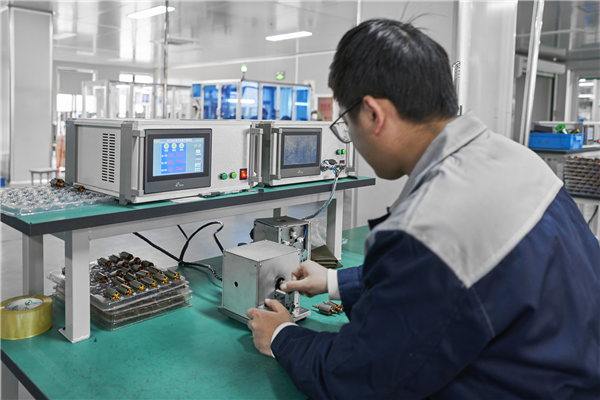

• Stringent Quality Control

  All motors undergo Life Testing, High/Low-Temperature Testing, and Salt Spray Testing before leaving the factory, ensuring every unit shipped meets ISO9001 and CE/RoHS standards.

• Competitive Pricing (DC Motor Wholesale)

Leveraging the complete supply chain in Ningbo, we eliminate middleman markups, offering direct factory-to-warehouse B2B pricing.
